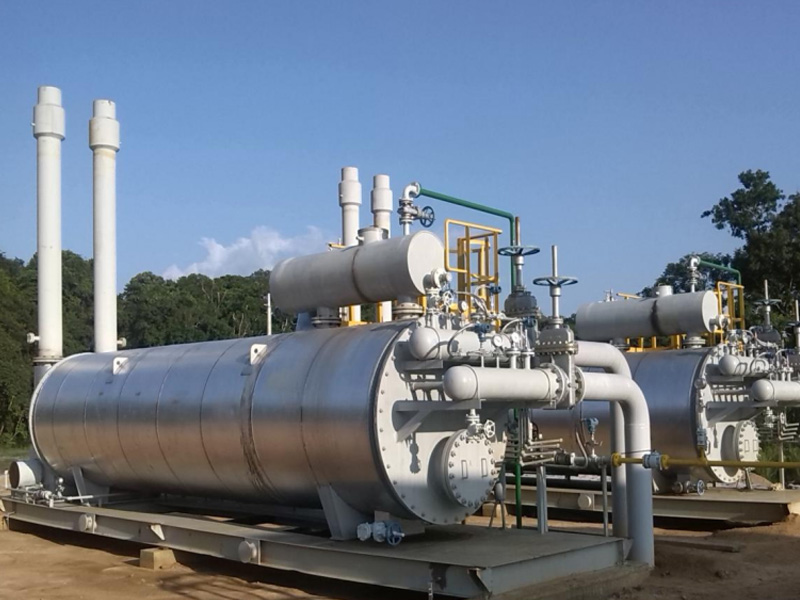

本公司專業制造燃油燃?xì)馑∈郊訜釥t，專為加熱天然氣或原油用的無壓熱水鍋爐,是為滿足油田特殊需要而設計的一種專用加熱設備，主要用于油氣集輸系統過程中，將原油、天然氣等加熱到工藝要求的溫度，以便進行輸送、沉降、分離、脫水和初加工。
Our company specializes in manufacturing fuel gas water bath heating furnaces, which are pressure free hot water boilers designed specifically for heating natural gas or crude oil. They are a specialized heating equipment designed to meet the special needs of oil fields, mainly used in the process of oil and gas gathering and transportation systems to heat crude oil, natural gas, etc. to the required temperature for transportation, settling, separation, dehydration, and initial processing.
詳細說明：負荷范圍: 1000 kW (80萬大卡/h) 至10000 kW (860萬大卡/h) 燃料:天然氣，LPG，工藝氣體，輕油（柴油），重油，原油。
Detailed description: Load range: 1000 kW (800000 kcal/h) to 10000 kW (8.6 million kcal/h) Fuel: natural gas, LPG， Process gases, light oil (diesel), heavy oil, crude oil.
水浴爐工作原理：燃燒器將燃料充分燃燒，熱量經加熱爐火筒（輻射受熱面）及煙管（對流受熱面）傳遞給殼體內中間介質水，水將熱量傳遞給浸泡其中的盤管，從而使盤管中的介質被加熱
Working principle of water bath furnace: The burner fully burns the fuel, and the heat is transferred to the intermediate medium water in the shell through the heating furnace fire tube (radiation heating surface) and smoke pipe (convection heating surface). The water transfers the heat to the coil immersed in it, thereby heating the medium in the coil
2、特點：2. Characteristics:
水浴爐采用戶外設計，全天候防護。The water bath adopts an outdoor design with all-weather protection.
水浴爐無壓運行，無鍋爐安裝要求，無排放，無相關鍋爐規范和操作約束；The water bath operates without pressure, there are no boiler installation requirements, no emissions, and no relevant boiler specifications and operational constraints;
水浴式加熱爐組由二部分組成：爐體、換熱器。爐體上部分設有膨脹水箱。換熱器嚴格按照國家標準GB151-1999管殼式換熱器制造。間接式加熱：本體無壓、系統承壓，標準配置出口壓力1.0Mpa.主要由水套、火筒、煙管、煙囪、盤管、燃?xì)馊紵刂葡到y(tǒng)組成及操作間組成，設備出廠時所有附件儀表全部安裝完畢，經過近二十年的油田現場應用及設計優化，具有性能極其可靠，熱效率高，安裝使用簡單等優點。
The water bath heating furnace group consists of two parts: the furnace body and the heat exchanger. The upper part of the furnace is equipped with an expansion water tank. The heat exchanger is manufactured strictly in accordance with the national standard GB151-1999 for shell and tube heat exchangers. Indirect heating: The main body has no pressure, the system is pressurized, and the standard outlet pressure is 1.0Mpa. It mainly consists of a water jacket, a fire tube, a smoke pipe, a chimney, a coil, a gas combustion control system, and an operating room. All accessory instruments are installed when the equipment leaves the factory. After nearly 20 years of on-site application and design optimization in oil fields, it has the advantages of extremely reliable performance, high thermal efficiency, and simple installation and use.
A、產品主要性能特點: A、 Main performance characteristics of the product
1、針對用戶需求個性化設計，提供油氣田及集輸系統介質加熱的完善解決方案；只要用戶提供相關的技術參數和要求，即可為用戶量身定制并提供完美的周到、可靠的服務。
1.Personalized design tailored to user needs, providing comprehensive solutions for medium heating in oil and gas fields and gathering and transportation systems; As long as users provide relevant technical parameters and requirements, we can tailor and provide perfect, thoughtful, and reliable services for them.
2、適應范圍廣，被加熱介質可以是天然氣、原油、污水以及混合井流物。處理量范圍大，管程壓力可達7MPa。
2.Widely applicable, the heated medium can be natural gas, crude oil, sewage, and mixed well fluids. The processing capacity range is large, and the tube side pressure can reach 7MPa.
3、加熱性能穩定、均勻；控制最佳風燃比，燃燒效率高。
3.Stable and uniform heating performance; Control the optimal air-fuel ratio for high combustion efficiency.
4、單盤管、多盤管設置，各盤管負荷和管程壓力依照用戶要求設計。
4.Single coil and multi coil settings, with each coil load and tube side pressure designed according to user requirements.
5、盤管可以是可抽出式，易于維修和保養。5. The coil can be withdrawable and easy to maintain and repair.
6、一體化撬裝設計、結構緊湊，熱效率高，按裝簡單、維護方便。
5.Integrated modular design, compact structure, high thermal efficiency, simple installation, and easy maintenance.
7、豐富冗余的全自動控制系統，實現輸出功率自動調節、安全防護及故障應急手動等功能；獨立、穩定的控制系統實現上傳和接受外圍控制系統信號和指令，實現了真正意義上的全參量控制。
6.Rich and redundant fully automatic control system, realizing functions such as automatic output power adjustment, safety protection, and emergency manual fault response; An independent and stable control system enables uploading and receiving signals and instructions from peripheral control systems, achieving true full parameter control.
8、無電負壓燃燒型設備可以在無電源環境中正常工作及自我控制盒故障保護，性能可靠，故障率極低。
7.The non electric negative pressure combustion type equipment can work normally in a non power environment and has self-control box fault protection, with reliable performance and extremely low failure rate.
9、全自動微電腦控制，安全可靠,機組配有微電腦控制系統，實現燃燒、水位、溫度自動控制，確保機組安全可靠運行。
9. Fully automatic microcomputer control, safe and reliable. The unit is equipped with a microcomputer control system to achieve automatic control of combustion, water level, and temperature, ensuring safe and reliable operation of the unit.
10、使用壽命長,機組內 熱媒水，在90℃以下低溫運行，并完全排除了溶解氧的腐蝕，換熱器中不結垢，延長了機組使用的壽命，換熱效果極佳，是普通鍋爐壽命1.5~2倍，長達20年。
10. Long service life, the heat medium water in the unit operates at low temperatures below 90 ℃ and completely eliminates the corrosion of dissolved oxygen. The heat exchanger does not scale, extending the service life of the unit. The heat transfer effect is excellent, 1.5 to 2 times the service life of ordinary boilers, up to 20 years.
11、結構緊湊、安裝簡便、節省費用 鍋爐與換熱器的一體化設計，結構緊湊，產品易于運輸、安裝。多臺機組并聯使用，免去了換熱站的設計與施工，節省費用。
11. The integrated design of the boiler and heat exchanger is compact in structure, easy to install, and cost-effective. The product is easy to transport and install. Multiple units are used in parallel, eliminating the need for design and construction of heat exchange stations and saving costs.
本公司擁有各類專業技術人員，實力雄厚，并建立有完善的服務體系， 可為用戶提供“一條龍”式的一流服務：從設計、安裝、調試到保養、維修等，亦可按用戶的不同要求而提供不同形式的單項或多項服務。
Our company has various professional and technical personnel with strong capabilities, and has established a complete service system, which can provide users with a "one-stop" first-class service: from design, installation, commissioning to maintenance, repair, etc. We can also provide different forms of single or multiple services according to users' different requirements.
